Command-line tools in bioinformatics

• A large proportion of bioinformatics tools are available only on the command line. Moreover, even for tools equipped with a graphical user interface (e.g. BLAST, clustal, …) the use of command-line can be necessary for some projects

• Enables to automate the tasks

  • Managing repetitive processes: apply the same task to numerous data files or with many different options
  • Managing complex processes combining many tasks (workflows)

• High performance computing (HPC)

  • running tasks that require huge resources of computing and storage

• Traceability, reproducibility, reusability

  • traceability: keeping track of each step and parameter used to produce a result
  • reproducuibility; enabling to re-run the analysis and reproduce the same results
  • reusability: enabling to run the same analysis with different data

Working environments

Most bioinformatics tools can be installed on Unix-like operating systems (Linux, Mac OS X), and can be used in different environments.

• Terminal of your own computer (Linux, Mac OS X)
• Virtual Machine (e.g. VirtualBox, VWMare)
• Containers (Docker, singularity)
• Terminal of a remote computer (via an ssh connection)
• Bureau Virtuel

Virtual machines

• Components

  • host: can be your own computer (note: also used to deploy services on HPC computers)
  • host operating system (Linux, Mac, Windows)
  • virtual machine (VM) : emulation of an other computer, that runs on the host machine
  • operating system of the VM: Linux, Windows, …
  • hypervisor (= monitor): software that runs the virtual machines on the host

• Typical applications

  • run a Linux OS on a Windows or Macintosh PC
  • test a software under different operating systems
  • isolate a service from the host system (security, resource segmentation)

• Examples of hypervisors

  • VirtualBox (https://www.virtualbox.org/)
  • VWMare (https://www.vmware.com/)

Container-based virtualisation

• Applications run on a shared operating system without requiring a virtual machine

• Advantages

  • modular combination of applications and libraries (“à la carte”)
  • less resource-consuming than virtual machines

• Container management software

  • Docker (https://www.docker.com/)
  • singularity (https://www.sylabs.io/singularity/)

Virtual machines versus containers

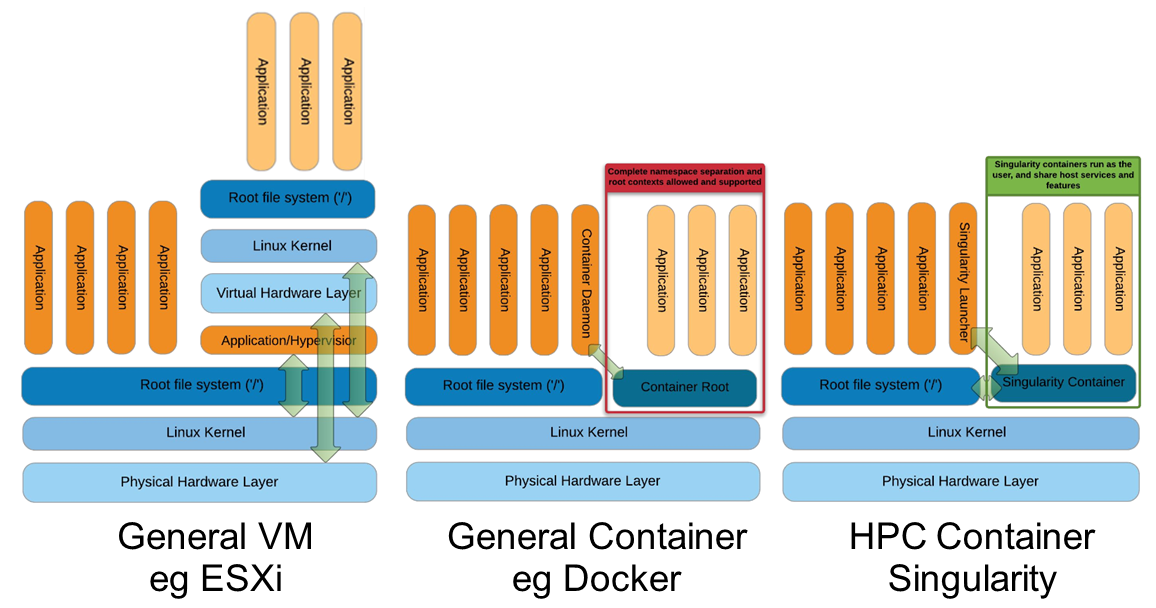

Comparaison of virtualisation solutions. Right: Virtual Machine; Center: Docker container; right: Singularity container. Source: Greg Kurtzer keynote at HPC Advisory Council 2017 @ Stanford

Installation of software tools in the local operating system

• Advantages

  • Immediate availability of the tools
  • Direct invocation by the native operating system (more efficient)

• Weaknesses

  • Dependences (system libraries, language libraries, other executables)
  • Incompatibilities between dependences of different tools
  • The installation of some tools and libraries requires admin rights
  • OS-dependency of package managers (package managers): apt-get, yum, ports, brew, …
  • Some applications and libraries are available only on some package managers.

Conda packages

• Doc : https://conda.io/docs/

• Advantages

  • A multi-platform package manager (Linux, Mac OS X, Windows)
  • All the installations can be done at the user-level (no need to be admin)
  • Community project supported by a large community (computer scientists, statisticians, bioinformaticians, …) \(\rightarrow\) ever-increasing number of supported tools an libraries
  • Continuous integration \(\rightarrow\) very fast response to requests
  • Very precise management of the dependencies and version
  • Seamingless management of uninstallation for no more required software
  • Trying it is adopting it!

• Weaknesses

  • If each used installs each tool and dependencies in her/his own account, this creates redundancy and waste of storage space.

Computer cluster

A cluster is a set of computers (denotes as nodes) that work together and can be seen as a single system. Clusters are generally used to run parallel computing

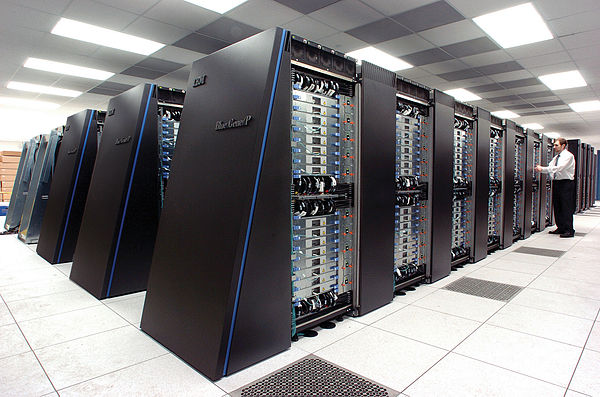

Grappe de serveurs. En avant-plan: Homo sapiens tentant d’établir une interaction physique avec les machines. Source: https://en.wikipedia.org/wiki/Parallel_computing

Parallel computing

Parallel computing consists in running simultaneously a series of processes on a computer system.

Tasks can be distributed on several Computer Processing Units (CPUs) of a same computer and/or on several computers (cluster).

The distribution of tasks on nodes and CPUs relies on a job scheduler. Users submit jobs (in the form of command lines or scripts) to the scheduler, which manages their execution on the different nodes and CPUs.
